Base class for socket descriptor I/O handlers. More...

#include <IOHandler.h>

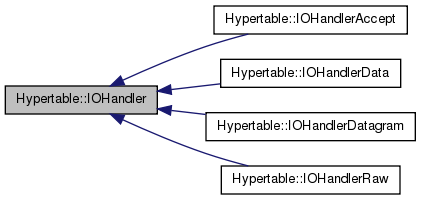

Inheritance diagram for Hypertable::IOHandler:

Collaboration diagram for Hypertable::IOHandler:

Public Member Functions
	IOHandler (int sd, const DispatchHandlerPtr &dhp, Reactor::Priority rp=Reactor::Priority::NORMAL)
	Constructor. More...

	IOHandler (int sd)
	Constructor. More...

virtual bool	handle_event (struct pollfd *event, ClockT::time_point arrival_time)=0
	Event handler method for Unix poll interface. More...

virtual	~IOHandler ()
	Destructor. More...

void	deliver_event (EventPtr &event, DispatchHandler *dh=0)
	Convenience method for delivering event to application. More...

int	start_polling (int mode=PollEvent::READ)
	Start polling on the handler with the poll interest specified in `mode`. More...

int	add_poll_interest (int mode)
	Adds the poll interest specified in `mode` to the polling interface for this handler. More...

int	remove_poll_interest (int mode)
	Removes the poll interest specified in `mode` to the polling interface for this handler. More...

int	reset_poll_interest ()
	Resets poll interest by adding m_poll_interest to the polling interface for this handler. More...

InetAddr	get_address ()
	Gets the handler socket address. More...

InetAddr	get_local_address ()
	Get local socket address for connection. More...

void	set_proxy (const String &proxy)
	Sets the proxy name for this connection. More...

const String &	get_proxy ()
	Gets the proxy name for this connection. More...

int	get_sd ()
	Gets the socket descriptor for this connection. More...

void	get_reactor (ReactorPtr &reactor)
	Get the reactor that this handler is assigned to. More...

void	display_event (struct pollfd *event)
	Display polling event from `poll()` interface to stderr. More...

Protected Member Functions
bool	test_and_set_error (int32_t error)
	Sets m_error to `error` if it has not already been set. More...

int32_t	get_error ()
	Returns first error code encountered by handler. More...

InetAddr	get_alias ()
	Get alias address for this connection. More...

void	set_alias (const InetAddr &alias)
	Set alias address for this connection. More...

void	increment_reference_count ()
	Increment reference count. More...

void	decrement_reference_count ()
	Decrement reference count. More...

size_t	reference_count ()
	Return reference count. More...

void	decomission ()
	Decomission handler. More...

bool	is_decomissioned ()
	Checks to see if handler is decomissioned. More...

virtual void	disconnect ()
	Disconnect connection. More...

short	poll_events (int mode)
	Return `poll()` interface events corresponding to the normalized polling interest in `mode`. More...

void	stop_polling ()
	Stops polling by removing socket from polling interface. More...

Protected Attributes
std::mutex	m_mutex
	Mutex for serializing concurrent access More...

size_t	m_reference_count
	Reference count. More...

uint32_t	m_free_flag
	Free flag (for testing) More...

int32_t	m_error
	Error code. More...

String	m_proxy
	Proxy name for this connection. More...

InetAddr	m_addr
	Handler socket address. More...

InetAddr	m_local_addr
	Local address of connection. More...

InetAddr	m_alias
	Address alias for connection. More...

int	m_sd
	Socket descriptor. More...

DispatchHandlerPtr	m_dispatch_handler
	Default dispatch hander for connection. More...

ReactorPtr	m_reactor
	Reactor to which this handler is assigned. More...

int	m_poll_interest
	Current polling interest. More...

bool	m_decomissioned
	Decomissioned flag. More...

bool m_socket_internally_created	true
	Socket was internally created and should be closed on destroy. More...

Friends
class	HandlerMap

Detailed Description

Base class for socket descriptor I/O handlers.

When a socket is created, an I/O handler object is allocated to handle events that occur on the socket. Events are encapsulated in the Event class and are delivered to the application through a DispatchHandler. For example, a TCP socket will have an associated IOHandlerData object that reads messages off the socket and sends then to the application via the installed DispatchHandler object.

Definition at line 76 of file IOHandler.h.

Constructor & Destructor Documentation

Hypertable::IOHandler::IOHandler	(	int	sd,
		const DispatchHandlerPtr &	dhp,
		Reactor::Priority	rp = `Reactor::Priority::NORMAL`
	)

inline

Constructor.

Initializes the I/O handler, assigns it a Reactor, and sets m_local_addr to the locally bound address (IPv4:port) of sd (see getsockname).

Parameters

sd	Socket descriptor
dhp	Dispatch handler

Definition at line 87 of file IOHandler.h.

Hypertable::IOHandler::IOHandler ( int sd )

inline

Constructor.

Initializes handler for raw I/O. Assigns it a Reactor and sets m_local_addr to the locally bound address (IPv4:port) of sd.

Parameters

sd	Socket descriptor

Definition at line 103 of file IOHandler.h.

virtual Hypertable::IOHandler::~IOHandler ( )

inlinevirtual

Destructor.

If #m_socket_internally_created is set to true, closes the socket descriptor m_sd.

Definition at line 152 of file IOHandler.h.

Member Function Documentation

int Hypertable::IOHandler::add_poll_interest ( int mode )

Adds the poll interest specified in mode to the polling interface for this handler.

This method adds the poll interest, specified in mode, to the polling interface for this handler and merges mode into m_poll_interest using bitwise OR (|). If an error is encountered, m_error is set to the approprate error code.

Returns: Error::OK on success, or one of Error::COMM_POLL_ERROR, Error::COMM_SEND_ERROR, or Error::COMM_RECEIVE_ERROR on error

void Hypertable::IOHandler::decomission ( )

inlineprotected

Decomission handler.

This method decomissions the handler by setting the m_decomissioned flag to true. If the reference count is 0, the handler is also scheduled for removal with a call to m_reactor->schedule_removal(this).

Note: This method assumes the caller is serializing access to this and related methods with a mutex lock.

See also: increment_reference_count, decrement_reference_count, reference_count, and is_decomissioned

Definition at line 382 of file IOHandler.h.

void Hypertable::IOHandler::decrement_reference_count ( )

inlineprotected

Decrement reference count.

If reference count drops to 0 and the handler is decomissioned then it is scheduled for removal with a call to m_reactor->schedule_removal(this).

Note: This method assumes the caller is serializing access to this and related methods with a mutex lock.

See also: increment_reference_count, reference_count, and decomission

Definition at line 355 of file IOHandler.h.

void Hypertable::IOHandler::deliver_event	(	EventPtr &	event,
		DispatchHandler *	dh = `0`
	)

inline

Convenience method for delivering event to application.

This method will deliver event to the application via the event handler dh if supplied, otherwise the event will be delivered via the default event handler, or no default event handler exists, it will just log the event. This method is (and should always) by called from a reactor thread.

Parameters

event	pointer to Event (deleted by this method)
dh	Event handler via which to deliver event

Definition at line 169 of file IOHandler.h.

virtual void Hypertable::IOHandler::disconnect ( )

inlineprotectedvirtual

Disconnect connection.

Reimplemented in Hypertable::IOHandlerData.

Definition at line 399 of file IOHandler.h.

void IOHandler::display_event ( struct pollfd * event )

Display polling event from poll() interface to stderr.

Parameters

event Pointer to pollfd structure describing poll() event.

Definition at line 60 of file IOHandler.cc.

InetAddr Hypertable::IOHandler::get_address ( )

inline

Gets the handler socket address.

The socket address is the address of the remote end of the connection for data (TCP) handlers, and the local socket address for datagram and accept handlers.

Returns: Handler socket address

Definition at line 229 of file IOHandler.h.

InetAddr Hypertable::IOHandler::get_alias ( )

inlineprotected

Get alias address for this connection.

Returns: Alias address for this connection.

Definition at line 327 of file IOHandler.h.

int32_t Hypertable::IOHandler::get_error ( )

inlineprotected

Returns first error code encountered by handler.

When an error is encountered during handler methods, the first error code that is encountered is recorded in m_error. This method returns that error or Error::OK if no error has been encountered.

Returns: First error code encountered by this handler, or Error::OK if no error has been encountered

Definition at line 319 of file IOHandler.h.

InetAddr Hypertable::IOHandler::get_local_address ( )

inline

Get local socket address for connection.

Returns: Local socket address for connection.

Definition at line 234 of file IOHandler.h.

const String& Hypertable::IOHandler::get_proxy ( )

inline

Gets the proxy name for this connection.

Returns: Proxy name for this connection.

Definition at line 247 of file IOHandler.h.

void Hypertable::IOHandler::get_reactor ( ReactorPtr & reactor )

inline

Get the reactor that this handler is assigned to.

Parameters

reactor Reference to returned reactor pointer

Definition at line 260 of file IOHandler.h.

int Hypertable::IOHandler::get_sd ( )

inline

Gets the socket descriptor for this connection.

Returns: Socket descriptor for this connection.

Definition at line 255 of file IOHandler.h.

virtual bool Hypertable::IOHandler::handle_event	(	struct pollfd *	event,
		ClockT::time_point	arrival_time
	)

pure virtual

Event handler method for Unix poll interface.

Parameters

event	Pointer to pollfd structure describing event
arrival_time	Arrival time of event

Returns: true if socket should be closed, false otherwise

Implemented in Hypertable::IOHandlerData, Hypertable::IOHandlerDatagram, Hypertable::IOHandlerRaw, and Hypertable::IOHandlerAccept.

void Hypertable::IOHandler::increment_reference_count ( )

inlineprotected

Increment reference count.

Note: This method assumes the caller is serializing access to this and related methods with a mutex lock.

See also: decrement_reference_count, reference_count, and decomission

Definition at line 343 of file IOHandler.h.

bool Hypertable::IOHandler::is_decomissioned ( )

inlineprotected

Checks to see if handler is decomissioned.

Returns: true if it is decomissioned, false otherwise.

Definition at line 393 of file IOHandler.h.

short Hypertable::IOHandler::poll_events ( int mode )

inlineprotected

Return poll() interface events corresponding to the normalized polling interest in mode.

mode is some bitwise combination of the flags PollEvent::READ and PollEvent::WRITE.

Returns: poll() events correspond to polling interest specified in mode.

Definition at line 408 of file IOHandler.h.

size_t Hypertable::IOHandler::reference_count ( )

inlineprotected

Return reference count.

Note: This method assumes the caller is serializing access to this and related methods with a mutex lock.

See also: increment_reference_count, decrement_reference_count, and decomission

Definition at line 368 of file IOHandler.h.

int Hypertable::IOHandler::remove_poll_interest ( int mode )

Removes the poll interest specified in mode to the polling interface for this handler.

This method removes the poll interest, specified in mode, from the polling interface for this handler and strips mode from m_poll_interest using boolean operations. If an error is encountered, m_error is set to the approprate error code.

Returns: Error::OK on success, or one of Error::COMM_POLL_ERROR, Error::COMM_SEND_ERROR, or Error::COMM_RECEIVE_ERROR on error

int Hypertable::IOHandler::reset_poll_interest ( )

inline

Resets poll interest by adding m_poll_interest to the polling interface for this handler.

If an error is encountered, m_error is set to the approprate error code.

Returns: Error::OK on success, or one of Error::COMM_POLL_ERROR, Error::COMM_SEND_ERROR, or Error::COMM_RECEIVE_ERROR on error

Definition at line 220 of file IOHandler.h.

void Hypertable::IOHandler::set_alias ( const InetAddr & alias )

inlineprotected

Set alias address for this connection.

Parameters

alias Reference to return alias address.

Definition at line 334 of file IOHandler.h.

void Hypertable::IOHandler::set_proxy ( const String & proxy )

inline

Sets the proxy name for this connection.

Parameters

proxy Proxy name to set for this connection.

Definition at line 239 of file IOHandler.h.

int IOHandler::start_polling ( int mode = PollEvent::READ )

Start polling on the handler with the poll interest specified in mode.

This method registers the poll interest, specified in mode, with the polling interface and sets m_poll_interest to mode. If an error is encountered, m_error is set to the approprate error code.

Returns: Error::OK on success, or one of Error::COMM_POLL_ERROR, Error::COMM_SEND_ERROR, or Error::COMM_RECEIVE_ERROR on error

Definition at line 91 of file IOHandler.cc.

void Hypertable::IOHandler::stop_polling ( )

inlineprotected

Stops polling by removing socket from polling interface.

Clears m_poll_interest.

Definition at line 420 of file IOHandler.h.

bool Hypertable::IOHandler::test_and_set_error ( int32_t error )

inlineprotected

Sets m_error to error if it has not already been set.

This method checks to see if m_error is set to Error::OK and if so, it sets m_error to error and returns true. Otherwise it does nothing and returns false.

Returns: true if m_error was set to error, false otherwise.

Definition at line 303 of file IOHandler.h.

Friends And Related Function Documentation

friend class HandlerMap

friend

Definition at line 292 of file IOHandler.h.

Member Data Documentation

InetAddr Hypertable::IOHandler::m_addr

protected

Handler socket address.

Definition at line 457 of file IOHandler.h.

InetAddr Hypertable::IOHandler::m_alias

protected

Address alias for connection.

Definition at line 463 of file IOHandler.h.

bool Hypertable::IOHandler::m_decomissioned

protected

Decomissioned flag.

Calls to methods that reference this member must be mutex protected by caller.

Definition at line 483 of file IOHandler.h.

DispatchHandlerPtr Hypertable::IOHandler::m_dispatch_handler

protected

Default dispatch hander for connection.

Definition at line 469 of file IOHandler.h.

int32_t Hypertable::IOHandler::m_error

protected

Error code.

Definition at line 451 of file IOHandler.h.

uint32_t Hypertable::IOHandler::m_free_flag

protected

Free flag (for testing)

Definition at line 448 of file IOHandler.h.

InetAddr Hypertable::IOHandler::m_local_addr

protected

Local address of connection.

Definition at line 460 of file IOHandler.h.

std::mutex Hypertable::IOHandler::m_mutex

protected

Mutex for serializing concurrent access

Definition at line 440 of file IOHandler.h.

int Hypertable::IOHandler::m_poll_interest

protected

Current polling interest.

The polling interest is some bitwise combination of the flags PollEvent::READ and PollEvent::WRITE.

Definition at line 478 of file IOHandler.h.

String Hypertable::IOHandler::m_proxy

protected

Proxy name for this connection.

Definition at line 454 of file IOHandler.h.

ReactorPtr Hypertable::IOHandler::m_reactor

protected

Reactor to which this handler is assigned.

Definition at line 472 of file IOHandler.h.

size_t Hypertable::IOHandler::m_reference_count

protected

Reference count.

Calls to methods that reference this member must be mutex protected by caller.

Definition at line 445 of file IOHandler.h.

int Hypertable::IOHandler::m_sd

protected

Socket descriptor.

Definition at line 466 of file IOHandler.h.

bool m_socket_internally_created Hypertable::IOHandler::true

protected

Socket was internally created and should be closed on destroy.

Definition at line 486 of file IOHandler.h.

The documentation for this class was generated from the following files:

/home/doug/src/hypertable/src/cc/AsyncComm/IOHandler.h
/home/doug/src/hypertable/src/cc/AsyncComm/IOHandler.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
